Ultimate Guide: Modernizing Aging Infrastructure with Retrofit Transformer Monitoring

1. Executive Summary: The Strategic Imperative of Retrofitting

In the evolving landscape of global power distribution, utilities and industrial operators face a critical dilemma: aging infrastructure. Transformers, the heart of the grid, are deteriorating, yet the capital expenditure (CapEx) required for full fleet replacement is often prohibitive. At Aleo Power, we believe the solution lies not in premature disposal, but in intelligent modernization.

Transformer monitoring plays a crucial role in maintaining the reliability of power systems. However, replacing transformers and related components can be expensive, time-consuming, and environmentally taxing. Retrofit transformer monitoring offers a practical solution for utilities to upgrade existing equipment with modern technology, improving performance and reliability without needing full replacements. By integrating advanced diagnostic tools into existing assets, Aleo Power enables clients to bridge the gap between legacy hardware and the smart grid of the future.

2. The Economic & Operational Case for Retrofitting

Cost-Benefit Analysis: Retrofit vs. Replacement

The financial argument for retrofitting is compelling. Replacing a high-voltage power transformer involves not only the cost of the unit but also logistics, installation, oil processing, and significant downtime. Retrofitting transformer monitoring solutions from partners like Dynamic Ratings offers a fraction of the cost while unlocking roughly 80% of the benefits of a new “smart” transformer.

  • Reduced Initial Investment: The cost of retrofitting is considerably lower than the expense of purchasing and installing new transformers. Integrating advanced monitoring systems like the C50 and B100 allows utilities to upgrade their transformers without needing full system replacements.
  • Minimized Downtime: Retrofit solutions are designed for easy installation, reducing downtime during the upgrade process. Unlike a full replacement which may take a transformer offline for weeks, Aleo Power’s retrofit kits can often be installed during standard scheduled maintenance windows.
  • ROI Maximization: Once transformers are retrofitted, they deliver enhanced performance and reliability. This boosts operational efficiency and generates a higher return on investment (ROI) over time.

Enhancing Operational Efficiency

Utilities can enhance their transformer operations with retrofit monitoring solutions, modernizing existing equipment. This approach leverages existing enclosures and panel mounts, integrating advanced monitoring capabilities without disrupting infrastructure.

A significant benefit is the shift from “Time-Based Maintenance” to “Condition-Based Maintenance” (CBM). Instead of performing maintenance indiscriminately every year, operators utilize real-time data to deploy crews only when necessary. This ensures better utilization of existing infrastructure while maximizing return on investment by keeping equipment in service for longer, enhanced performance.

3. Technical Deep Dive: The Science of Monitoring

To understand the value of the Aleo Power retrofit solution, one must understand the failure modes of a transformer. Our advanced systems—including the C50, E3, and B100—target the three main enemies of transformer longevity: Heat, Moisture, and Electrical Faults.

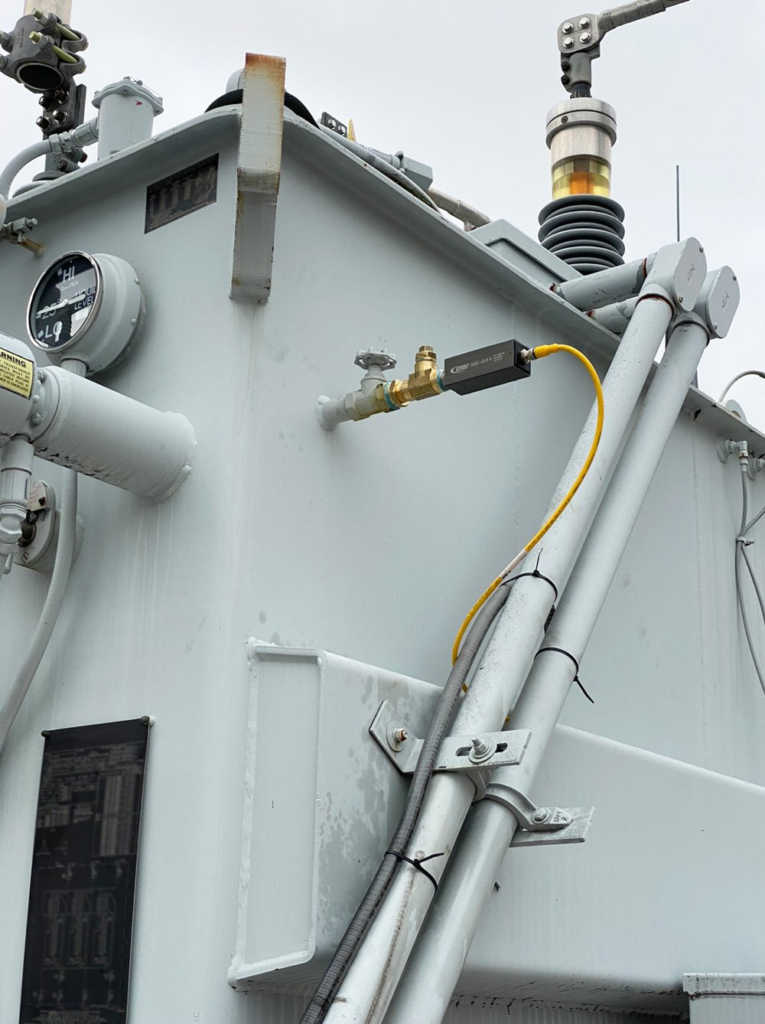

A. Hydrogen Detection (Early Fault Warning)

Hydrogen ($H_2$) buildup is a key indicator of internal transformer issues such as arcing or overheating. In transformer oil, hydrogen is typically the first gas to generate when stray gassing or low-energy discharges occur.

  • The Mechanism: Under thermal stress or partial discharge, the chemical bonds of the insulating oil break down, releasing hydrogen gas.
  • The Solution: Monitoring hydrogen levels allows for early detection and timely intervention, preventing costly failures and unplanned outages. Unlike periodic DGA (Dissolved Gas Analysis) sampling which might miss a rapidly developing fault, continuous online monitoring provides a 24/7 safety net.

B. Insulation Aging & Moisture

As transformers age, their insulation degrades, which can lead to reduced performance and increased risk of failure. Paper insulation degradation is irreversible. Moisture accelerates this process exponentially.

  • The Danger: Water content in oil migrates into the paper insulation, lowering its dielectric strength and accelerating depolymerization.
  • The Solution: These monitors track insulation wear and moisture content, helping utilities address issues before they compromise transformer integrity, extending the life of the equipment.

C. Cooling Efficiency

Efficient cooling is crucial for transformer longevity. Overheating destroys insulation. Aleo Power’s retrofit kits include sensors to monitor the temperature differential ($\Delta T$) across radiators and coolers. Monitoring cooling systems ensures transformers operate within optimal temperature ranges, preventing overheating and enhancing the lifespan and reliability of the equipment.

4. Product Spotlight: Aleo Power’s Advanced Monitoring Portfolio

Aleo Power integrates the world’s most reliable sensing technology. We offer adaptable and scalable options that can significantly enhance transformer monitoring capabilities.

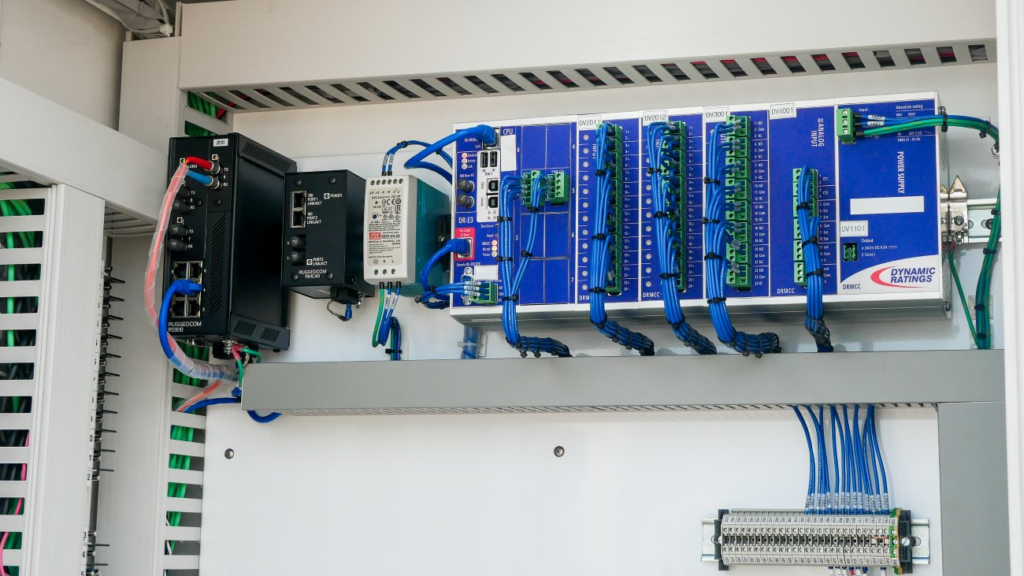

C50 Transformer Monitor (Comprehensive Health Hub)

The C50 Transformer Monitor offers utilities a comprehensive suite of monitoring features, such as bushing health tracking and cooling system monitoring.

  • Key Feature – Bushing Monitoring: Bushing failures account for a high percentage of catastrophic transformer fires. The C50 monitors capacitance and power factor changes in real-time.
  • Integration: Its flexible design allows for easy integration into existing infrastructure, delivering immediate improvements to system performance without the need for extensive system overhauls.

B100 Electronic Temperature Monitor (Compact & Critical)

The B100 provides a compact, versatile solution for monitoring essential transformer parameters like temperature, hydrogen levels, and moisture content. It helps utilities maintain transformer reliability and performance, eliminating the need for complete system replacements.

  • Application: Ideal for smaller distribution transformers where a full-scale C50 might be over-specified, but critical data is still required.

E3 Transformer Monitors (Fleet-Wide Intelligence)

Transformer failure can be catastrophic. The E3 Transformer Monitor uses field-proven technology in data collection, analysis, and visualization to detect and communicate changes in the conditions of transformers in real-time.

  • Combining with LIFESTREAM®: Combining the E3 monitoring solution with support services provides a comprehensive, data-driven approach to condition monitoring. With online condition-based data, users receive alarms when problems first arise.

5. Seamless Retrofit: The Aleo Power Implementation Process

One of the biggest concerns for Asset Managers is the complexity of installation. Aleo Power has streamlined this process to ensure “Plug-and-Play” capability.

Revitalize Old Equipment Seamlessly

Revitalizing old equipment can significantly enhance the performance and reliability of your transformers’ monitoring system. Our retrofit solutions offer a direct, one-to-one replacement for legacy configurations like the Qualitrol 509.

  • Mechanical Fit: Aleo Power provided monitors fit into existing panel mounts and frame designs, making replacement seamless.
  • No Structural Changes: Dynamic Ratings’ monitors are easy to retrofit in existing installations without making significant changes to the existing hardware or structure. We offer adapter panels that fit perfectly into the existing footprint.

6. Software Integration & SCADA

Hardware is only half the equation. The value of data lies in its analysis.

  • SCADA Integration: Both the C50 and B100 seamlessly integrate with SCADA systems, enabling real-time dashboards and efficient data analysis. This integration enhances decision-making, allowing utilities to monitor transformer health remotely and take timely corrective actions.
  • Predictive Maintenance: SCADA integration supports predictive maintenance by enabling utilities to track performance trends and identify potential issues before they lead to system failures.
  • Remote Troubleshooting: Real-time data allows utilities to troubleshoot and resolve issues remotely, improving safety by reducing the need for on-site inspections in hazardous high-voltage environments.

7. Sustainability & Circular Economy

At Aleo Power, we are committed to Green Energy solutions. Retrofitting is inherently sustainable.

Supporting Sustainability Through Retrofit Transformer Monitoring

Retrofitting transformers with modern technology enhances both performance and sustainability. It reduces waste by extending the life of existing equipment and minimizes the need for complete system replacements, which can have significant environmental impacts (manufacturing new steel, copper, and processing extensive amounts of oil). By optimizing the performance of existing infrastructure, utilities can meet modern demands while also contributing to long-term sustainability goals.

8. Real-World Applications: Early Detection Case Study

Dynamic Ratings™ C50 Transformer Monitor has demonstrated its value in real-world applications. For example, the monitor detected a rapid change in bushing capacitance for a prominent utility. The timely alert allowed the utility to identify a leaking bushing, preventing a catastrophic failure.

Aleo Power Perspective:

This case highlights the importance of continuous monitoring. Without the C50’s active monitoring of the Power Factor, this bushing would likely have exploded, causing oil fire damage to the main tank and potential environmental contamination. The ROI of this single catch covered the cost of monitoring equipment for the entire fleet.

9. Conclusion: Transform Your Aging Infrastructure with Aleo Power

Dynamic Ratings™ retrofit transformer monitoring solutions, implemented by Aleo Power, offer utilities an effective, cost-efficient way to modernize aging transformer infrastructure. With advanced condition-based monitoring technologies, utilities can enhance performance, reduce maintenance costs, and extend the lifespan of their transformer assets.

If you are looking to optimize your infrastructure while boosting operational efficiency and sustainability, contact Aleo Power today. Let our engineering team design a retrofit strategy that fits your budget and your grid’s reliability goals.
