PV-BESS-Diesel Hybrid Microgrid System
A rugged containerized microgrid solution combining solar PV, LFP battery storage and diesel generation for dependable off-grid and emergency power. Built for plug-and-play deployment, no complex on-site installation, and automatic source switching when power conditions change.
Solar, storage and diesel generator in one coordinated power system.
The system integrates PV input, LFP battery storage, hybrid inverter, EMS control, grid connection and diesel generator backup into a compact microgrid architecture. Factory pre-wiring shortens commissioning, while the controller balances self-consumption, backup reserve and load stability.
Fast deployment with intelligent power control.
Designed for project-based power applications where uptime, speed and operating cost matter. The system supports renewable-first operation, multi-source access and automatic regulation without turning every site into a long construction project.
Factory Pre-Wired
Integrated cabinet/container design reduces field wiring, installation complexity and handover time.
Automatic Switching
EMS coordinates PV, battery, grid and generator input to maintain stable supply during changing site conditions.
Multi-Source Access
Supports PV, battery, utility grid and diesel generator; optional wind, hydro or charging loads can be planned by project.
Scalable Architecture
Modular design supports expansion from compact temporary supply to larger industrial microgrid projects.
Critical Load Ready
Fast transfer logic helps protect production, communications, medical, data and security loads from interruptions.
Remote Management
EMS communication can support monitoring, dispatch, maintenance planning and virtual power plant integration.
Reference configuration for rapid project discussion.
Final specifications are engineered around load profile, site conditions, fuel availability and grid requirements. The reference configuration below is based on the 2026 supplier technical materials provided for this project.
| Item | Reference Value |
|---|---|
| Battery chemistry | LiFePO4 / LFP |
| DC coupling bus voltage | 900V high-voltage DC bus |
| PV MPPT range | 200-900V input, 99% tracking efficiency |
| Switching response | 0ms in configured transfer modes |
| Noise level | <50dB reference acoustic level |
| Operating environment | -20°C to 50°C reference range |
| Communication | Modbus RTU / Modbus TCP / IEC 61850 / DNP3 |
All values are reference parameters for solution discussion and may change with project design, local standards and selected generator configuration.
Where this configuration fits best.
PV-BESS-Diesel Hybrid Microgrid System
Choose this model when the site is remote, fuel logistics favor diesel, or the project needs resilient standby power that can start automatically during low-renewable or outage conditions.
Operating Logic
The EMS prioritizes PV and battery discharge, then automatically starts the diesel generator for emergency backup or extended autonomy. It is suited to harsh sites where reliability matters more than grid availability.

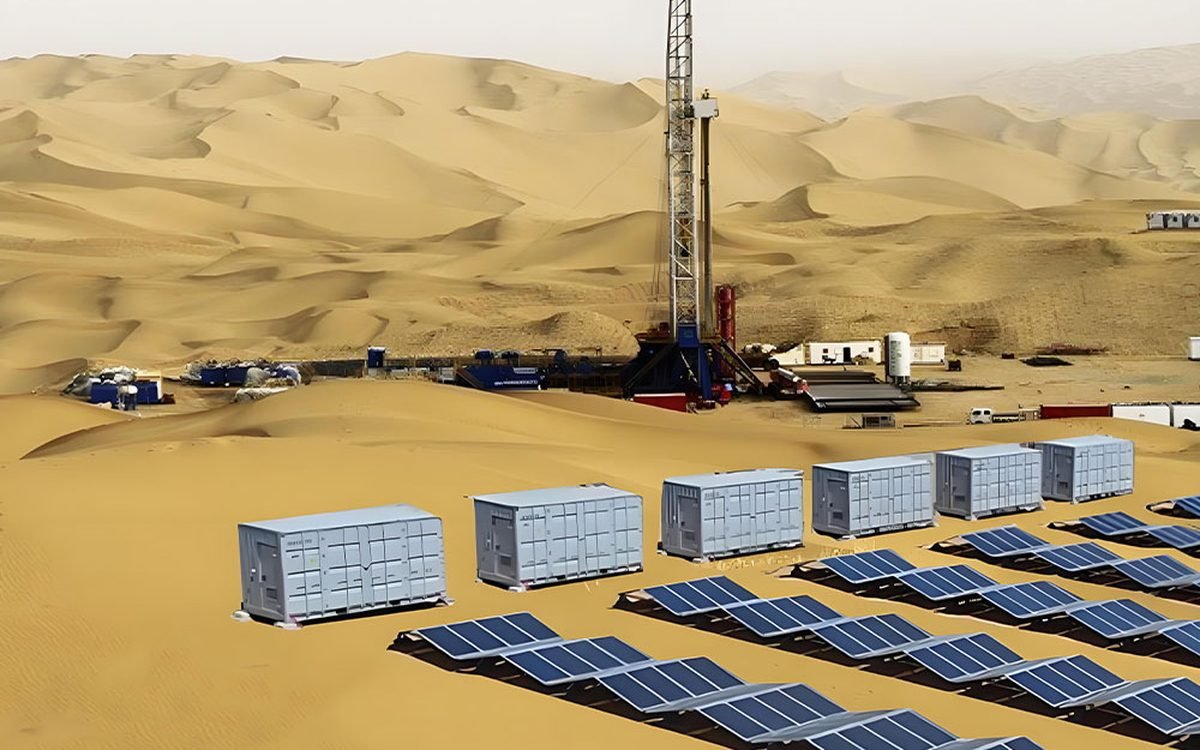

Mining & Oilfield

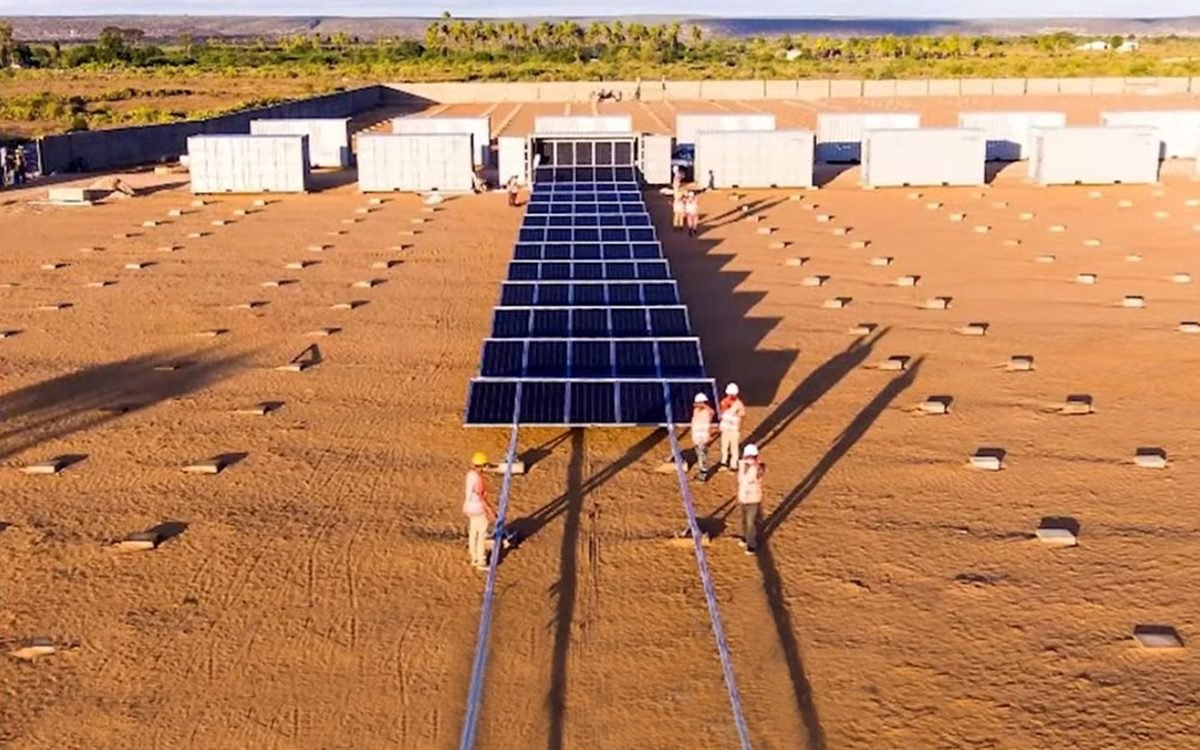

Temporary Worksite

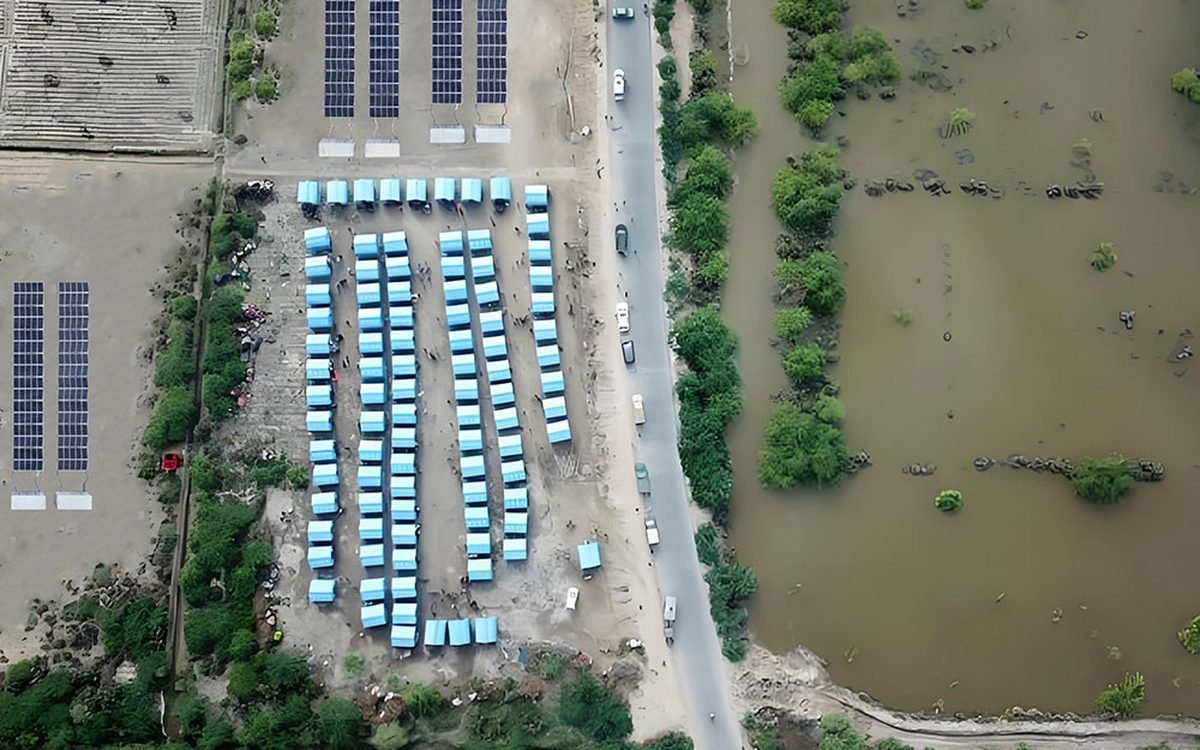

Disaster Response

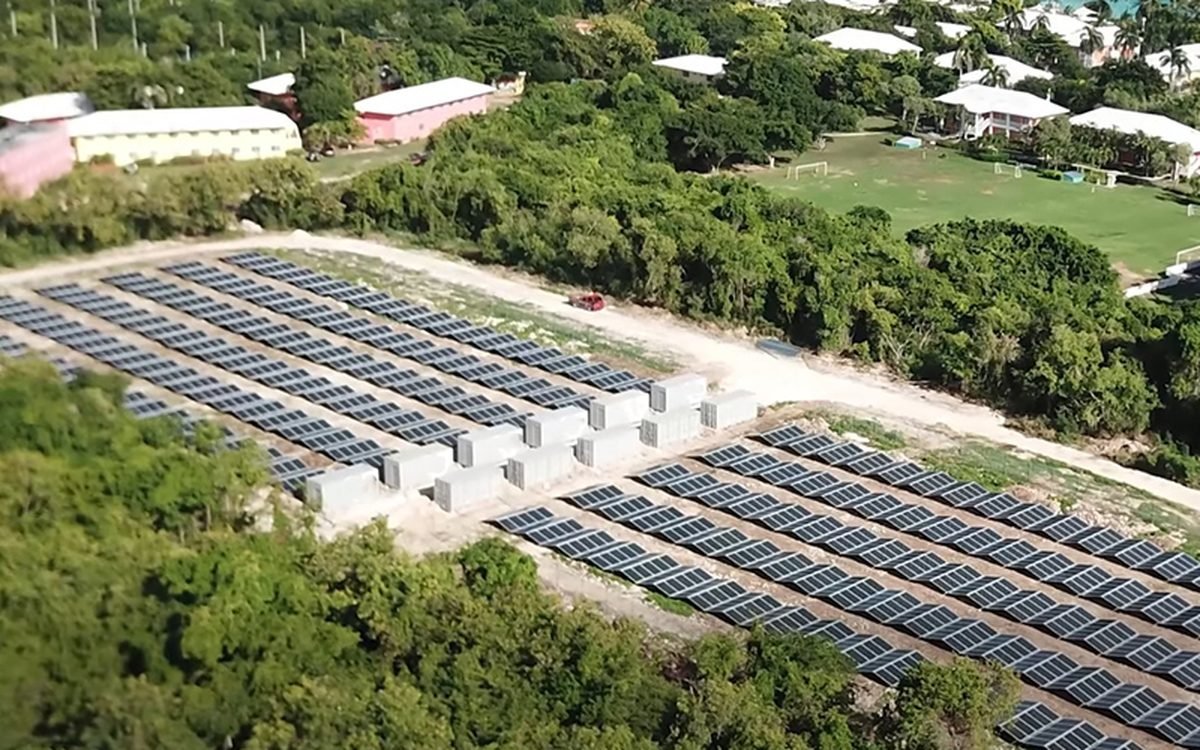

Island / Remote SiteReduce construction time, stabilize power and simplify operation.
Lower Site Work
Containerized integration limits civil work and shortens the path from delivery to energized operation.
Energy Cost Control
PV-first dispatch and battery buffering help reduce runtime of the thermal generator and improve fuel utilization.

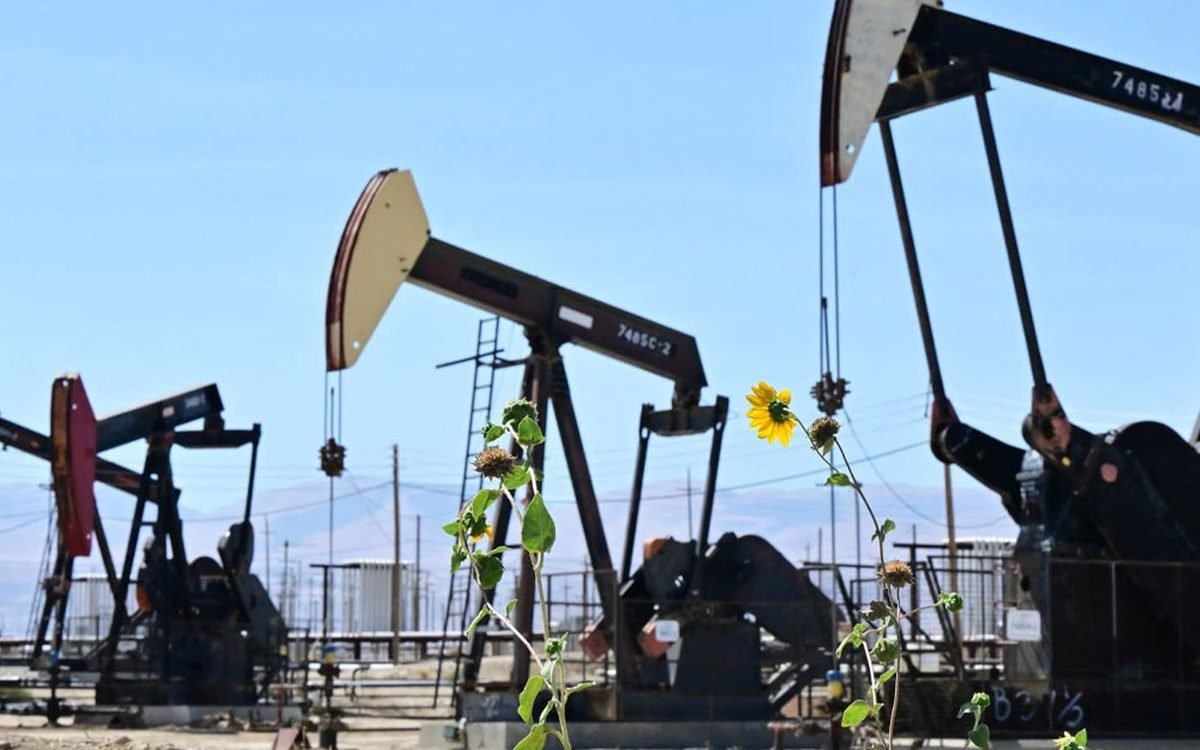

Reliable Backup
Diesel backup is practical for locations where fuel delivery is already established and fast emergency recovery is required. The system can be sized for standby, prime or hybrid operating models.

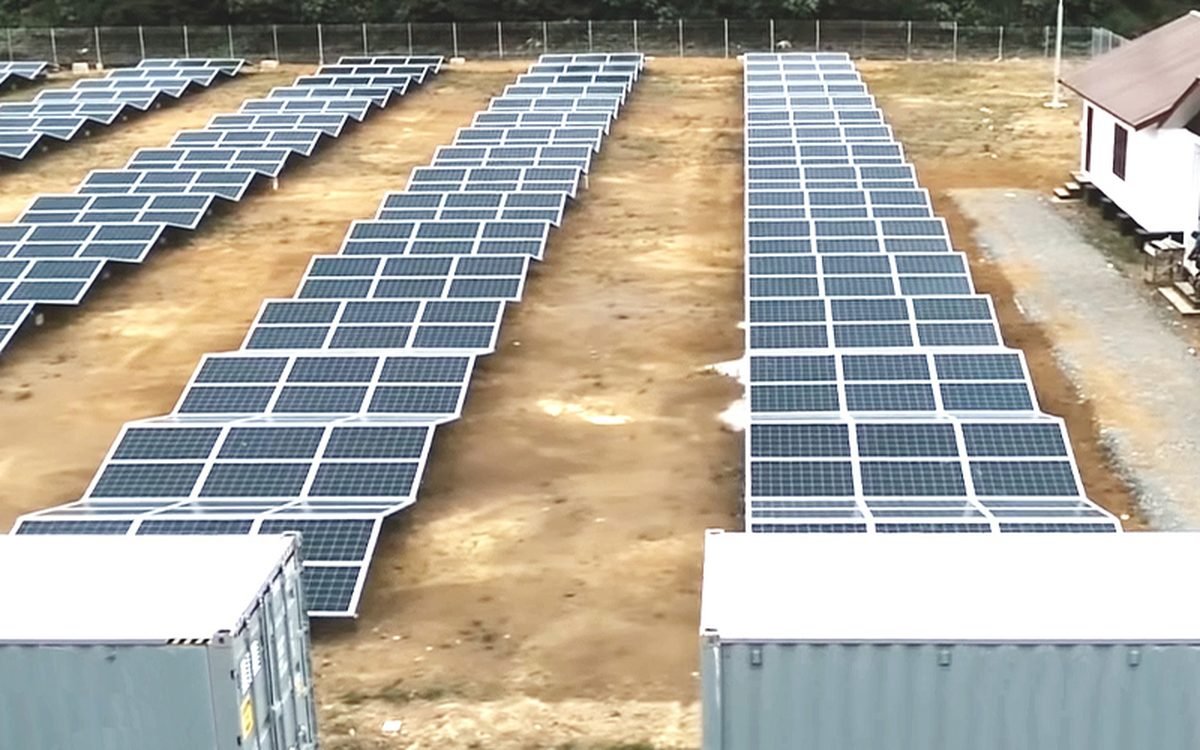

Fast Site DeploymentLower Site Work

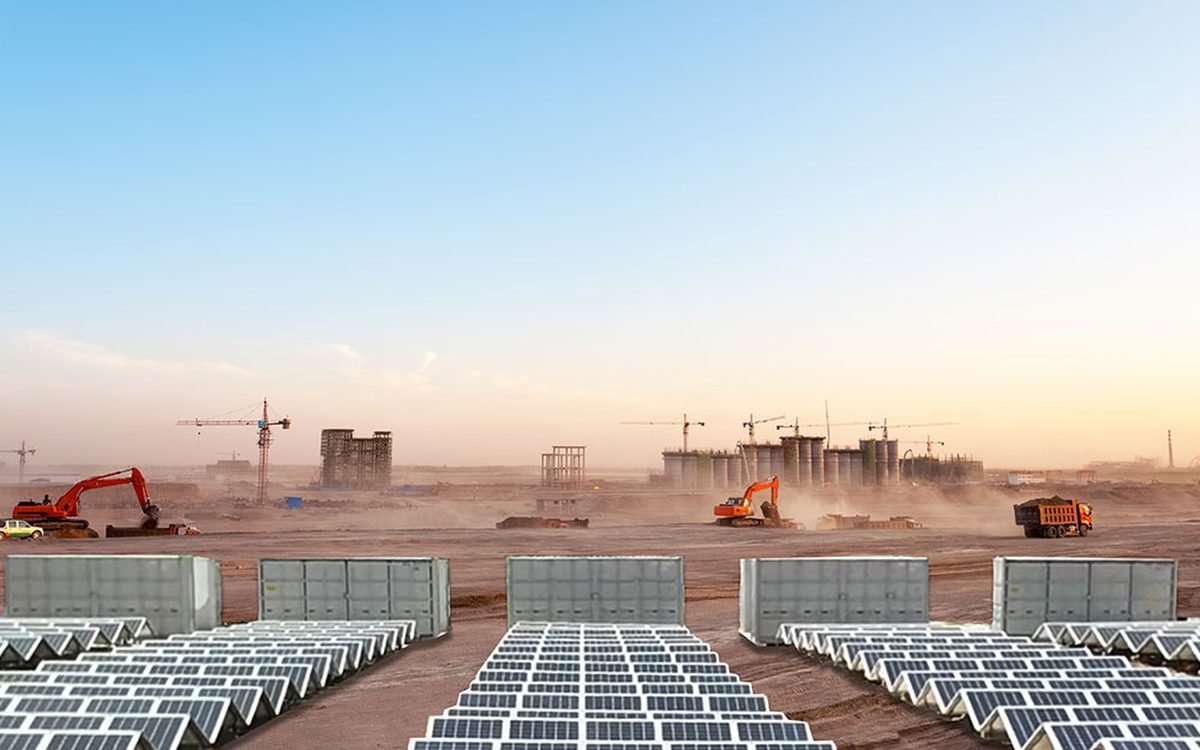

Lower Fuel RuntimeEnergy Cost Control
Resilient Backup PowerReliable BackupGet a microgrid plan sized for your actual load profile.
Share your site location, peak load, daily energy demand, backup duration and available fuel source. ALEO will help match PV, battery and generator capacity for a practical project proposal.
