Solar Panels N Type 700W 720w 750W 700 730 Watt Hjt Bifacial Double Glass Mono Photovoltaic Pv Module Price

Solar Panels N Type 700W 720w 750W 700 730 Watt Hjt Bifacial Double Glass Mono Photovoltaic Pv Module Price

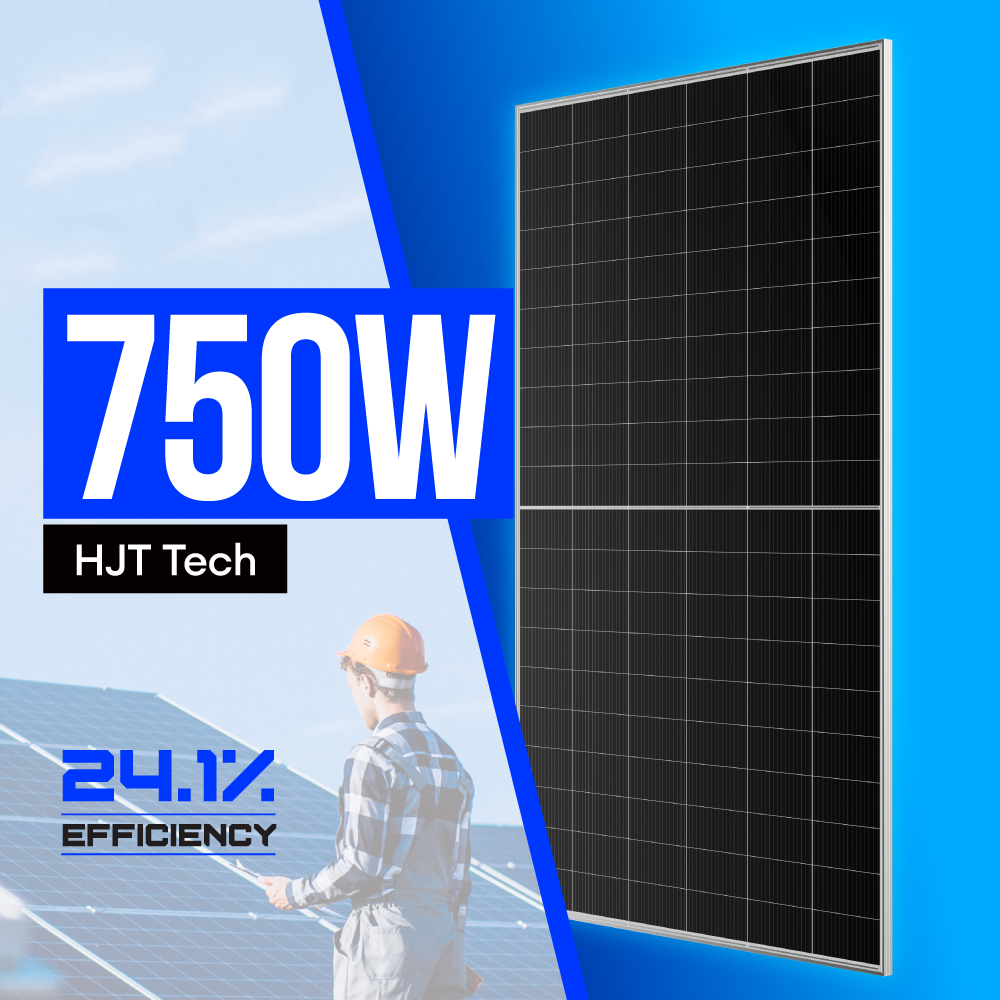

Solar Panels N Type 700W 720w 750W 700 730 Watt Hjt Bifacial Double Glass Mono Photovoltaic Pv Module Price - Image 2

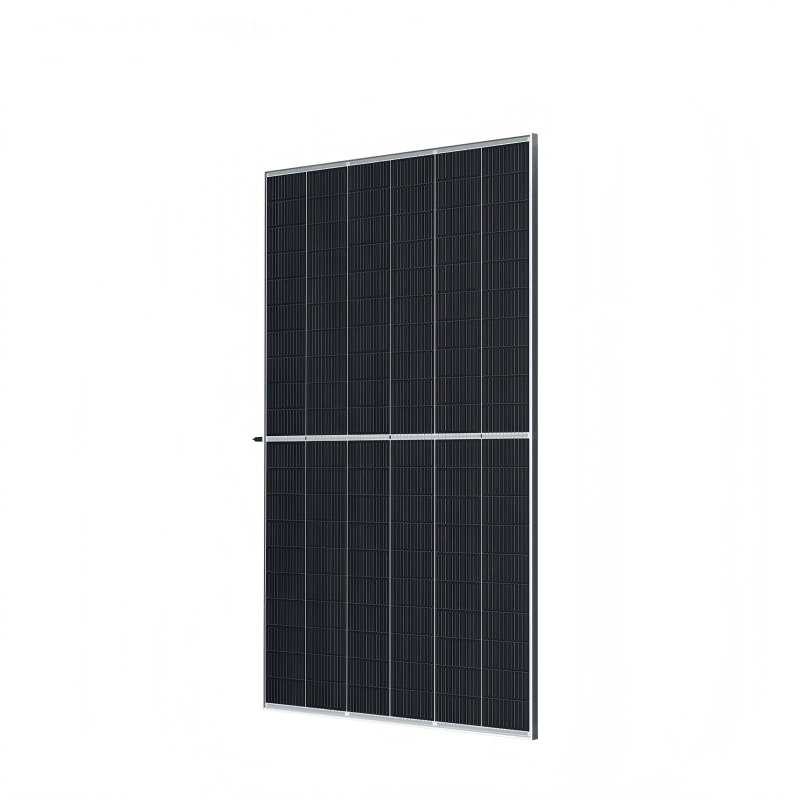

Solar Panels N Type 700W 720w 750W 700 730 Watt Hjt Bifacial Double Glass Mono Photovoltaic Pv Module Price - Image 3

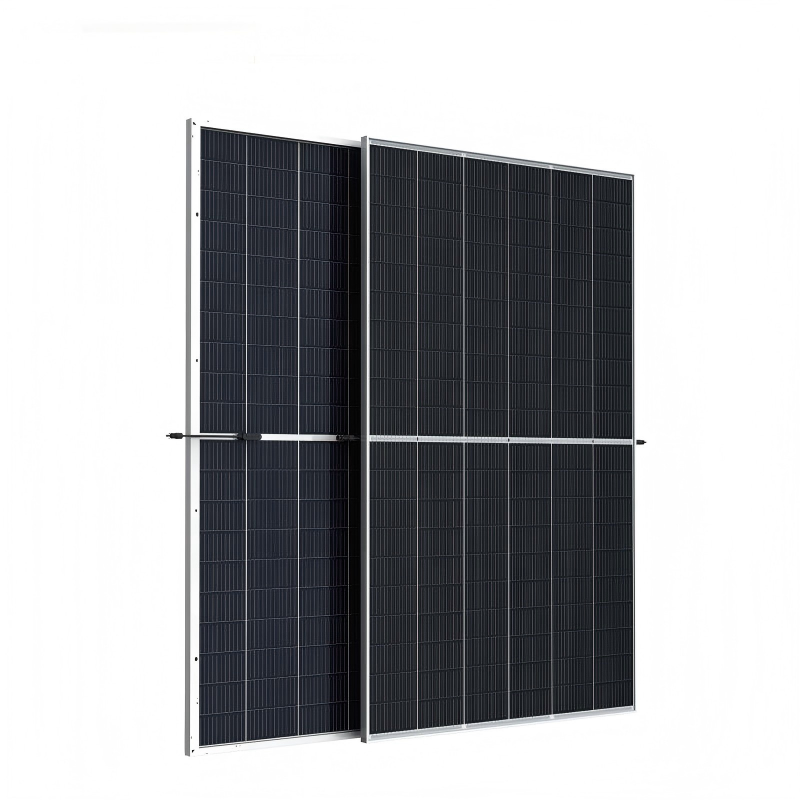

Solar Panels N Type 700W 720w 750W 700 730 Watt Hjt Bifacial Double Glass Mono Photovoltaic Pv Module Price - Image 4
Cell size182mmx182mm
TypeN-TYPE
Panel Efficiency21.5%
Place of OriginJiangsu, China
Panel Dimensions2278x1134x30mm(89.69×44.65×1.18in)
Brand NameAleo
Model NumberJKM570-590N-72HL4
ApplicationCommercial, civil, open space, roof, lake surface, etc.
Solar cellMono Crystalline
Product nameN type 580W solar panel
Frame30mm Anodized Aluminium Alloy
OEM OrderAcceptable
Weight27kg
ConnectorMC4 Compatible Connector
Number of Cells144 Cells
Glasssingle glass, 3.2mm tempered glass with anti-reflective coating
KeywordN Type 580W solar panels
Category
Ask For A Quote

Description

Module Type
SUN585-DE21M
STC
NOCT
Maximum Power (Pmax)
585Wp
441Wp
Maximum Power Voltage (Vmp)
44.02V
41.05V
Maximum Power Current (lmp)
13.29A
10.74A
Open-circuit Voltage (Voc)
52.70V
50.06V
Short-circuit Current (lsc)
14.01A
11.31A
Module Efficiency STC (%)
22.65%
Operating Temperature (°C)
-40°C~+85°C
Maximum System Voltage
1500 VDC(IEC)
Maximum Series Fuse Rating
30A
Power Tolerance
0-3%
Temperature Coefficients of Pmax
-0.29%/°C
Temperature Coefficients of Voc
-0.25%/°C
Temperature Coefficients of lsc
0.045%/°C
Nominal Operating Cell Temperature (NOCT)
45±2℃
STC:1000W/irradiance,25℃ cell temperture,AM1.5

NOCT: Irradiance at 800W/,Ambient temperature 20℃,wind speed 1m/s
