Tower UPS 200-1000 kVA

Tower UPS 200-1000 kVA

This series UPS is developed as a high frequency large capacity tower UPS which can solve most of the power supply problems, such as blackout, over-voltage, voltage sudden drop, oscillating of decreasing extent, It has a strong load capacity and can be matched with full inductive load or capacitive load.

Category
Ask For A Quote

Description

Product Description

UPS  (Uninterruptible  Power  Supply) is  a  type  of  power  supply  equipped  with  an  energy storage device. It is mainly used to provide uninterrupted power to some equipment with high requirements for power stability.

When the mains input is normal, the UPS stabilizes the mains voltage and then supplies it to the  load.  In this case, the  UPS  acts  as an AC voltage  regulator and simultaneously charges  its internal  battery.  When  a  mains  power  outage  occurs  (due to  a  fault),  the  UPS  immediately converts  the  DC  power  stored  in  the  battery  into  220V/380V  AC  power  via  an  inverter  and continues  supplying  power  to  the  load, enabling  the  load  to  maintain  normal  operation  and protecting both the hardware and software of the load from damage. Generally, UPS equipment can provide protection against both over-voltage and under-voltage conditions.

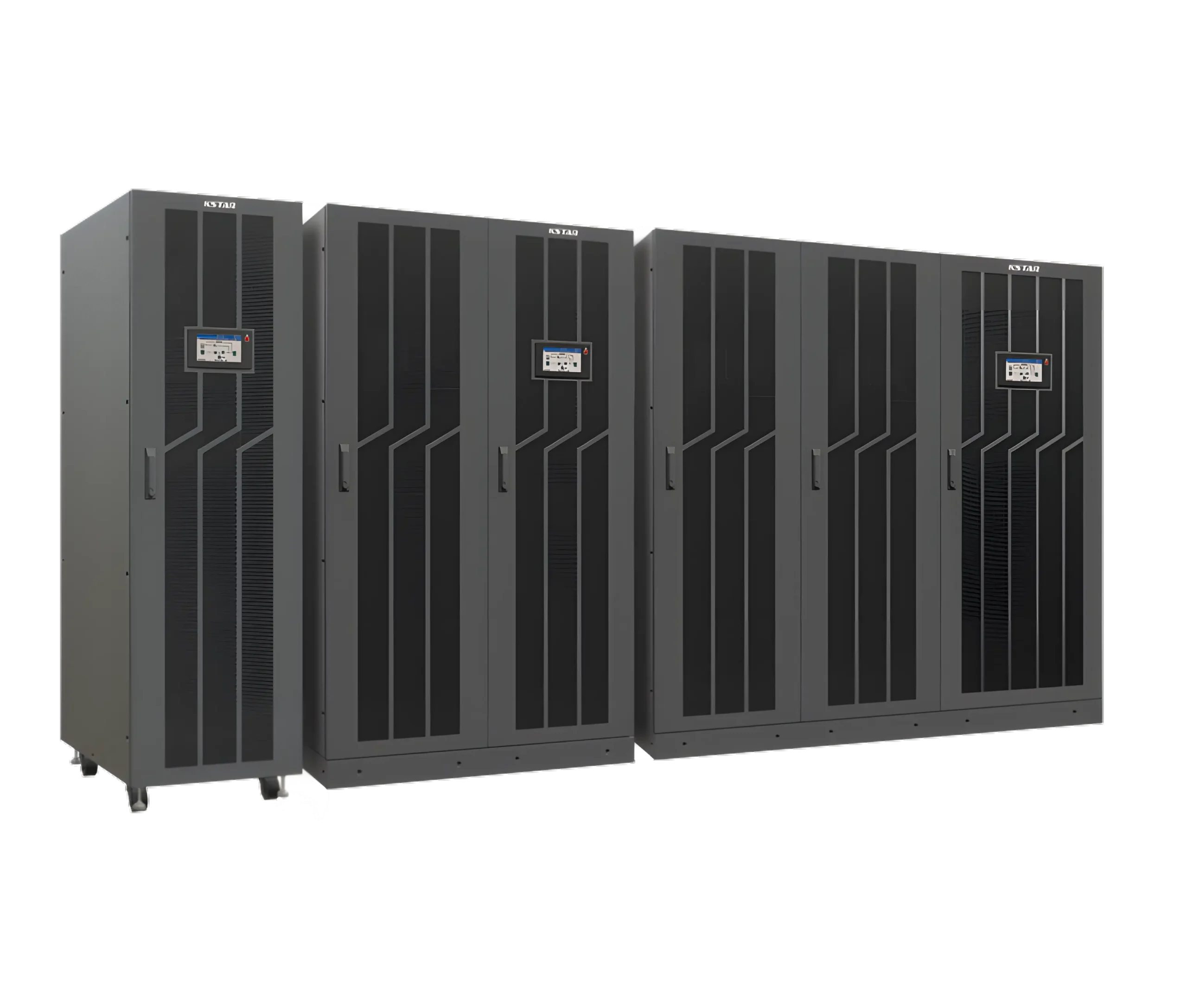

The HPM3300E-T series is a high-frequency, dual-conversion online modular UPS system, offering a power capacity range from 300kVA to 1200kVA in a three-phase input and output configuration. Designed primarily for large, hyper-scale, and high-density data centers, it delivers stable and clean AC power for critical loads.

  • Energy Efficiency: Features automatic module rotation for balanced workload distribution, achieving system efficiency up to 97.1%. Its HECO advanced bypass mode enables exceptional efficiency of 99.0%.

  • Safety & Reliability: Boasts an ultra-wide input voltage range of 138-415Vac. It incorporates redundant multi-digital bus parallel control; a single module failure does not affect system operation. Capable of handling 100% unbalanced loads.

  • Flexible Configuration: Supports parallel operation of up to 8 units. Offers battery configuration flexibility with 30 to 50 battery cells optional, supports lithium batteries, and features a neutral-less design. Each module provides high charging power up to 60kW and supports integrated power reservation.

  • Smart Operation & Maintenance: Employs a fully hot-swappable modular design. Includes functions like an on-screen oscilloscope, fault waveform recording, and intelligent dust removal. Provides lifecycle reminders for wear-prone components to facilitate preventive maintenance.


Categories
Recent Products
Product Gallery

FAQ

Are your generators truly "industrial grade"? What's the difference between them and commercial generators?

Yes, we are truly industrial grade. The core difference lies in our design mission, materials, and testing standards. Our products utilize V-type motors and F/H-class insulation technology, designed for continuous heavy-load operation 24/7, and have passed industry standard tests such as ISO 8528 and GB/T 2820. Commercial generators, on the other hand, are typically designed for intermittent use and cannot withstand prolonged full loads.

Choosing the appropriate power requires considering the starting current and operating power of all loads. A basic principle is: Generator rated power ≥ (Total steady-state operating power of all equipment × 1.1 + Maximum starting power difference of a single motor). We strongly recommend clicking “Free Power Solution Design” to have our engineers perform professional calculations and recommend the appropriate model, avoiding underpowered systems or wasted investment.

Fully compliant. Our gas generator sets utilize advanced technologies such as lean-burn combustion, achieving a gas turbine efficiency of up to 43.6%, a leading level in the industry. Nitrogen oxide (NOx) emissions are far below the strictest national environmental standards (e.g., ≤500mg/Nm³ @5% O₂). We can provide emission testing reports from authoritative institutions and assist you in completing your project’s environmental impact assessment.

We offer an extended warranty of 1 year/1000 hours (whichever comes first) for core components. The core components you use, such as Cummins and Stamford, enjoy a “Global Warranty,” and our Changzhou OEM factory has over 100 sales and service centers worldwide, along with a 24/7 service hotline. Furthermore, we have established a comprehensive spare parts inventory system to ensure rapid supply of commonly used parts.

Of course. We provide detailed drawings, remote technical guidance, and rigorous FAT (Factory Load Test) before shipment. This ensures the equipment operates in optimal condition, eliminating your installation worries.

Does it support remote monitoring and intelligent management?

Yes. Our intelligent units come standard with an IoT module. You can view operating data in real time, receive fault alerts, remotely start and stop the generator, and generate energy consumption analysis reports via a computer web browser or mobile app. We can also provide solutions for integrating with your existing Building Automation System (BAS) or Energy Management System (EMS), depending on your needs.

Absolutely stable. We use digital AVR (Automatic Voltage Regulator) and electronic speed control systems to ensure voltage fluctuation ≤ ±1% and frequency fluctuation ≤ ±0.5% (under rated load), fully meeting the power requirements of precision equipment (such as CNC machine tools, servers, and medical equipment). We are also one of the few manufacturers offering low harmonic distortion (THD < 3%) models, further protecting your sensitive loads.

The main advantages of a gas generator are: 1) Lower operating costs: Natural gas prices are generally more stable and cheaper than diesel. It can burn not only natural gas but also associated gas from abandoned oil fields; 2) More environmentally friendly and cleaner: Lower emissions, lubricating oil consumption of only 0.1g/kWh, no black smoke, and less noise; 3) Easier maintenance: More complete combustion, less carbon buildup, and extended overhaul intervals. It is ideal for applications with a stable gas supply and requirements for environmental protection and quiet operation, such as data centers, hospitals, and industrial parks. The payback period is 30% shorter than that of diesel generators.

Our standard quotation usually includes the main unit, standard accessories, factory testing, and packaging fees. Shipping costs, installation materials, and special customizations will be calculated separately based on the actual plan, but will be clearly stated in the contract. There are no hidden costs. The delivery time for standard models is approximately 6-8 weeks, while customized models will be determined based on requirements.

Parallel operation involves connecting two or more generators in parallel to achieve: 1) Capacity expansion: meeting increasing power demand; 2) Redundancy: when one generator fails, the others can continue to supply power, ensuring extremely high reliability; 3) Energy saving: automatically adjusting the number of operating generators according to the load to maintain high efficiency. If you have extremely high requirements for power supply reliability (such as in data centers), or if you have future expansion plans, a parallel operation system is the best choice.

Project Ordering Process

1. Inquiry & Requirement Confirmation

We begin by discussing your project specifications, application needs, and any existing technical documents.

2. Technical Data & Drawing Submission

You share detailed electrical parameters, site layouts, schematics, or conceptual drawings for our review.

3. Engineering Review & Solution Design

Our engineering team analyzes your data and designs a customized system, ensuring compliance with standards and project goals.

4. Quotation & Commercial Proposal

We provide a detailed offer including technical specifications, pricing, delivery schedule, and terms.

5. Order Confirmation & Contract Finalization

Upon agreement, we finalize the order and sign the contract to officially launch the project.

6. Pre-production Planning & Approval

We prepare manufacturing drawings and documents for your final approval before production begins.

7. Production & Quality Inspection

Manufacturing proceeds under strict quality control, with optional inspections available at key stages.

8. Testing & Certification

All products undergo rigorous performance and safety tests, with certifications provided as required.

9. Packing & Shipment

Equipment is securely packed and shipped according to agreed logistics terms.

10. Delivery & On-site Handover

We ensure safe arrival of goods and provide necessary documentation for customs and installation.

11. Installation Supervision & Commissioning

Our engineering team can provide on-site installation supervision, commissioning, and startup assistance.

12. Project Close-out & Follow-up

We complete final documentation, provide training if needed, and maintain ongoing technical support.
