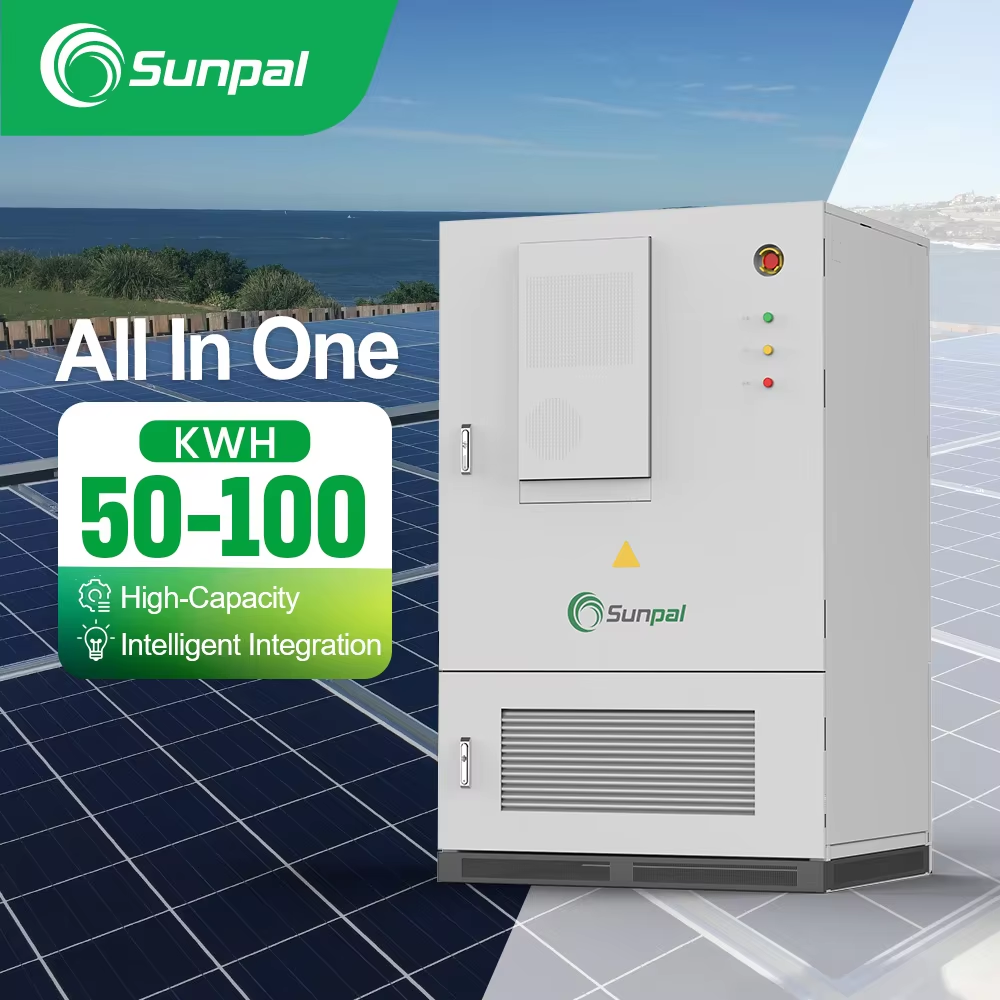

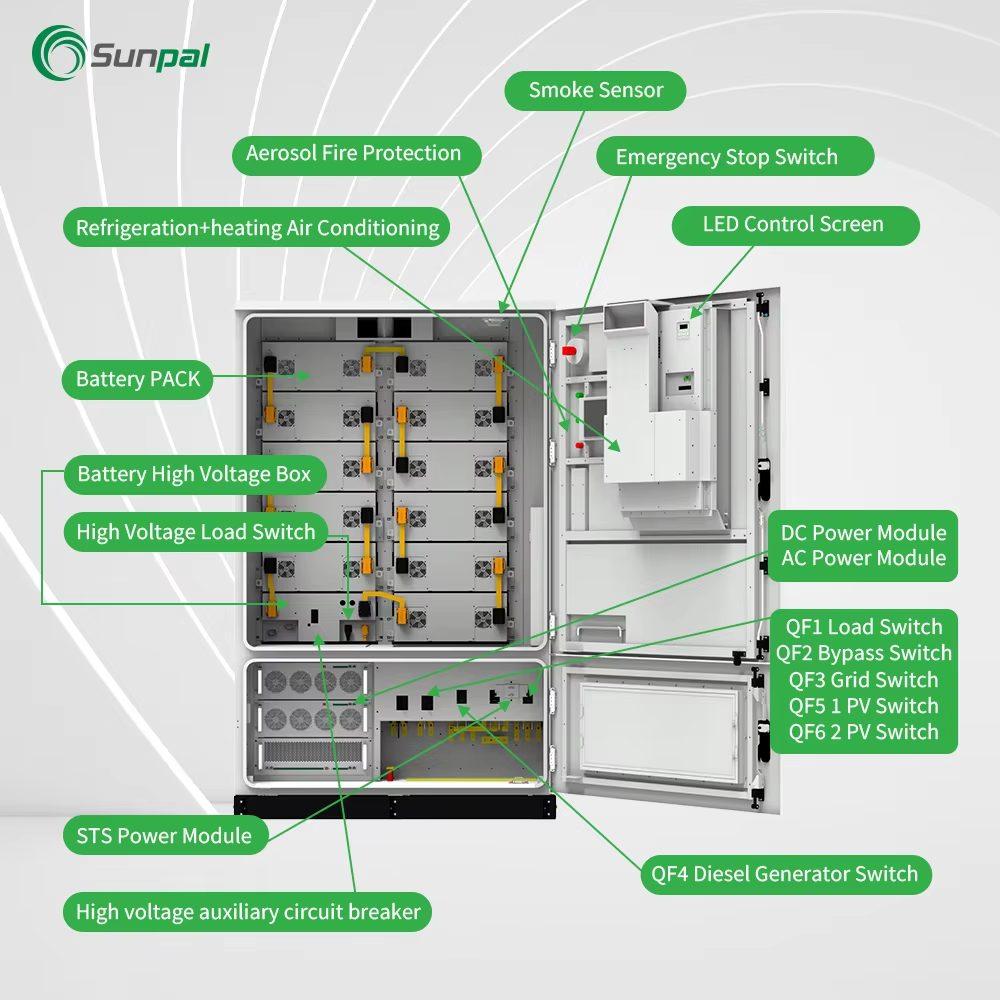

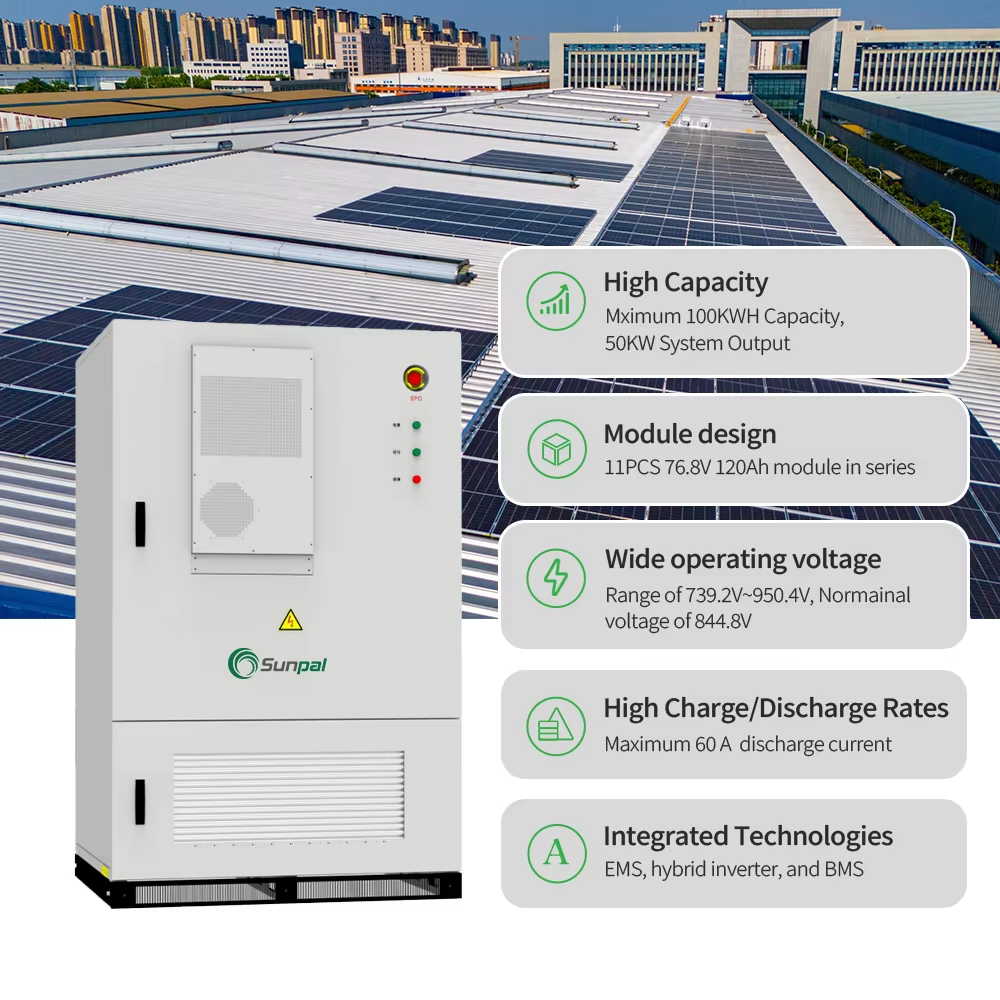

Outdoor All-in-One Energy Storage System | 50kW-100kWh Empower your business with reliable, efficient, and scalable energy solutions. *All-in-One Design: Integrated PCS, battery, BMS, EMS, and air conditioning in a compact outdoor cabinet, reducing installation complexity and cost. *High Safety & Reliability: LFP batteries with advanced BMS ensure long lifespan, real-time monitoring, and multi-level protection. *Flexible Applications: Ideal for C&I facilities, microgrids, EV charging stations, and renewable integration. *Peak Shaving & Energy Saving: Cut electricity bills, maximize solar self-consumption, and secure stable power supply. *Plug & Play Deployment: Factory pre-assembled and tested, quick to install and ready to operate. Delivering stable power, lower energy costs, and sustainability—your trusted partner for the future of energy.
|
Model
|
Monet-50TS（DC50）（100kWh）
|
|
Battery rated capacity
|
100kWh
|
|
Battery rated voltage
|
844.8V
|
|
Battery voltage range
|
739.2V~950.4V
|
|
Battery type
|
Lithium iron phosphate battery(LFP)
|
|
Battery cell capacity
|
120Ah
|
|
Series of Battery
|
1P*24S*11S
|
|
Maximum charge and discharge current
|
60A
|
|
Photovoltaic rated capacity
|
50kW
|
|
Photovoltaic voltage range
|
200~550V
|
|
Rated AC power
|
50kW
|
|
Rated AC current
|
72A
|
|
Rated AC voltage
|
400V，3W+N+PE/3W+PE
|
|
Rated AC frequency
|
50/60Hz
|
|
THDI
|
＜3%（Rated power）
|
|
Power Factor
|
-1leading to+1 lagging
|
|
THDU
|
＜3%（Linear Load）
|
|
Protection level
|
IP54
|
|
Isolation mode
|
Industrial Transformer Isolation
|
|
Shutdown self-discharge
|
＜100W（Without transformer）
|
|
Display
|
LCD
|
|
Relative humidity
|
0 ~ 95% (no condensation)
|
|
Noise
|
＜78dB
|
|
Ambient temperature
|
-25℃ to +60℃(with derating at temperatures above 45℃)
|
|
Cooling mode
|
Intelligent air-cooled
|
|
Altitude
|
3000m (> 3000m reduction)
|
|
Communication interface
|
CAN/Ethernet / 485
|
|
Dimension (W * D * H)
|
1300*1030*2100mm
|
|
Weight (approx.)
|
2150kg
|
