| Place of Origin | Hebei, China |
| Interface Standard | CCS2 |
| Output Current | AC |
| Output Power | 30KW |
| Input Voltage | 380 V |
| Purpose | for manufacturing |
| Condition | New |
| Model Number | DPM |
| Brand Name | SCU |
| AC Input Voltage | 3P+PE 380/400/415Vac |
| Peak efficiency | 96.5% |
| Super wide constant power voltage range | 300-500Vdc, 600-1000Vdc |
| Output current range | 0.5~100A |
| Output voltage range | 50-1000Vdc |
| Short circuit protection | Yes |
| Communication | CAN |
| Max. Number of parallel modules | 60 |
| Alarm and status | Display with digital tubes and LED |
| Cooling | Forced air cooling |
|
Model
|

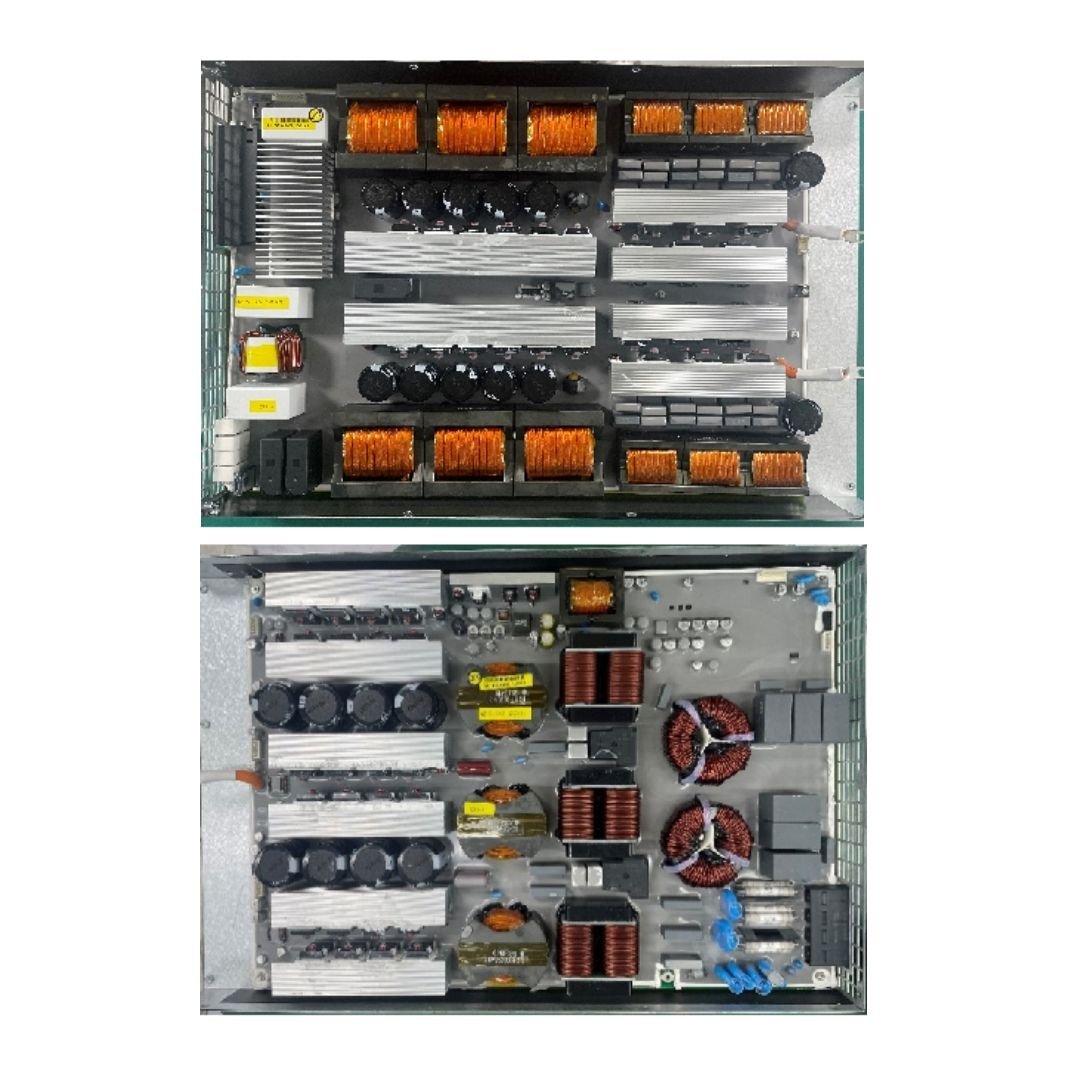

DPM1000/30 (30kW EV Charger Module)
|
|
Input Rate Voltage
|
3P+PE without N, 380/400/415Vac
|
|
Output DC Voltage Range
|
50~1000Vdc
|
|
Max Current
|
100Amax
|
To select a suitable transformer, key information such as rated capacity, primary and secondary voltage, frequency, installation environment, and local grid requirements is required.
If technical details are not fully defined, selection can be based on the application and operating conditions.
Oil-immersed transformers provide better heat dissipation and overload capability, making them suitable for outdoor and industrial applications.
Dry-type transformers are safer for indoor use, require less maintenance, and are commonly used in commercial buildings and data centers.
Yes. The transformers are designed for continuous 24/7 operation at rated load under normal operating conditions, making them suitable for critical power applications.
Transformers are available for low, medium, and high voltage applications.
Typical voltage levels include 400V, 690V, 6kV, 10kV, 11kV, 22kV, and 33kV, with various capacity options depending on project requirements.
Products are designed and manufactured in accordance with international standards such as IEC, IEEE, and ANSI, and can be customized to meet local grid standards.
Yes. The equipment is suitable for data centers and AI facilities, where stable power supply, continuous operation, and high reliability are required.
Yes. Designs can be adapted for high temperature and high humidity environments through appropriate insulation, cooling, and protection measures.
Production lead time depends on the product type and level of customization.
Standard models usually have shorter lead times, while customized solutions require additional manufacturing time.
We begin by discussing your project specifications, application needs, and any existing technical documents.
You share detailed electrical parameters, site layouts, schematics, or conceptual drawings for our review.
Our engineering team analyzes your data and designs a customized system, ensuring compliance with standards and project goals.
We provide a detailed offer including technical specifications, pricing, delivery schedule, and terms.
Upon agreement, we finalize the order and sign the contract to officially launch the project.
We prepare manufacturing drawings and documents for your final approval before production begins.
Manufacturing proceeds under strict quality control, with optional inspections available at key stages.
All products undergo rigorous performance and safety tests, with certifications provided as required.
Equipment is securely packed and shipped according to agreed logistics terms.
We ensure safe arrival of goods and provide necessary documentation for customs and installation.
Our engineering team can provide on-site installation supervision, commissioning, and startup assistance.
We complete final documentation, provide training if needed, and maintain ongoing technical support.
